Connectors, Ports and LEDs

Front Panel

Back Panel

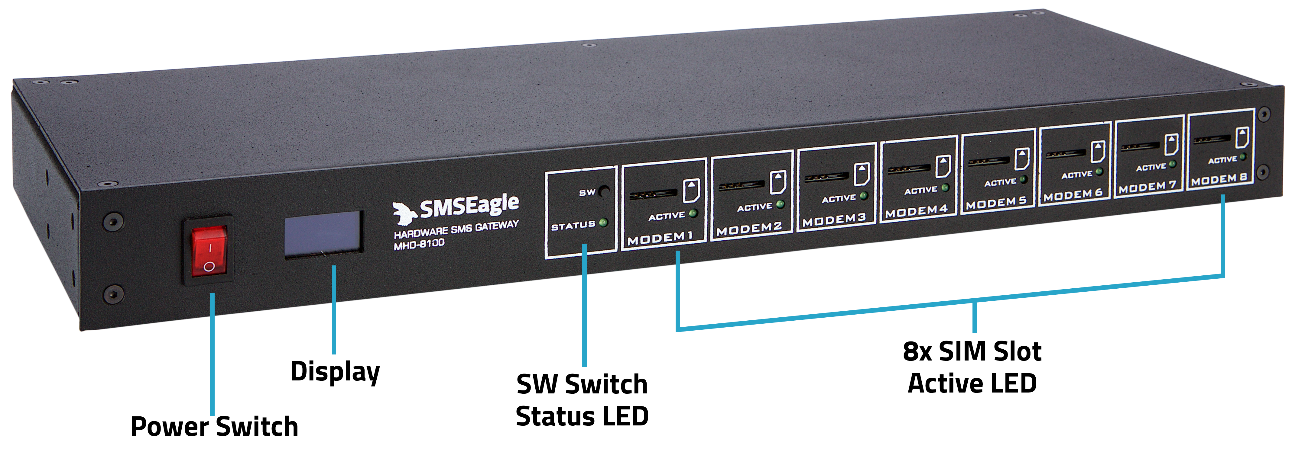

Front Panel

Element	Label	Description
Power switch	-	Power switch to turn on/off the device
Display	-	Display screen
User Switch	SW	Switch to toggle information on the display, restore settings to factory defaults
Status LED	STATUS	LED indicating device status
SIM slot	-	8x SIM slot - mini size
SIM Active LED	ACTIVE	8x LED indicator for modem status

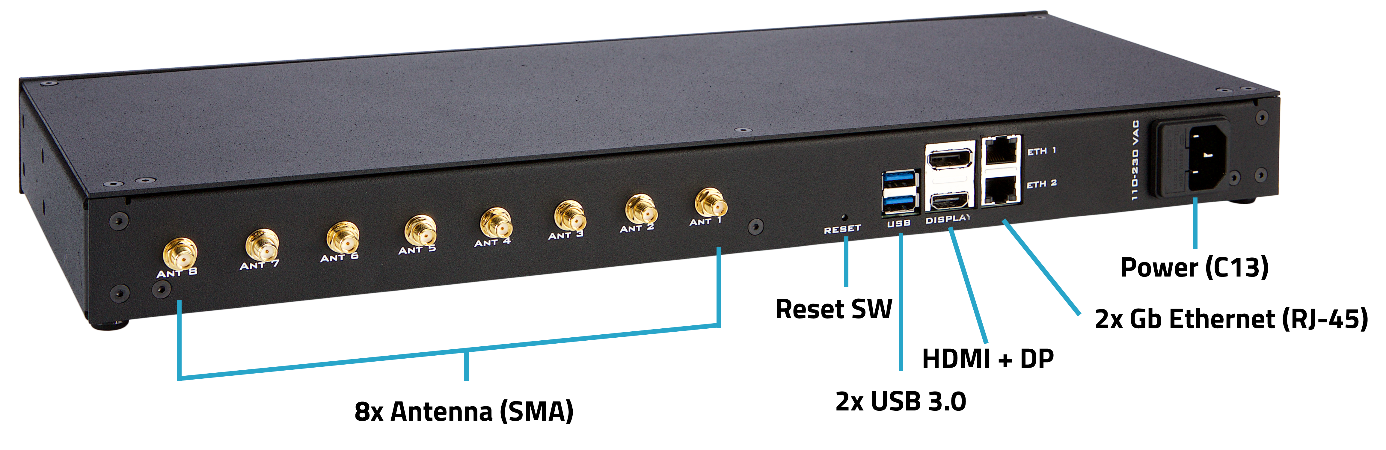

Back Panel

Element	Label	Description
Antenna	ANT1-8	Antenna socket (SMA)
Reset	RESET	Switch for rebooting the device
USB	USB	2x USB 3.0 port
Display ports	DISPLAY	HDMI & Display Port (for debugging purposes only)
Ethernet ports	ETH1-2	Gigabit Ethernet RJ45 ports
Power socket	110-230VAC	Power socket

Display

MHD-8100 display has 5 screens with different information on each screen. Using SW switch, you can change screens of the display.

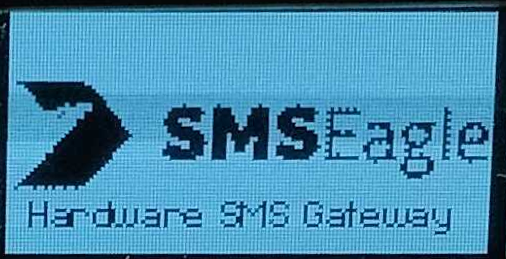

Screen 1: SMSEagle Logo

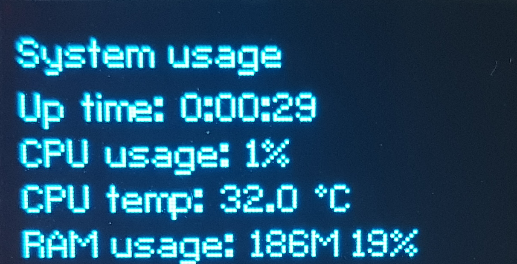

Screen 2: System Usage

Device power on time
CPU usage in %
CPU temperature in Celsius
RAM usage in Mb and %

MHD-8100 display showing system usage - up time, CPU usage, CPU temperature and RAM usage

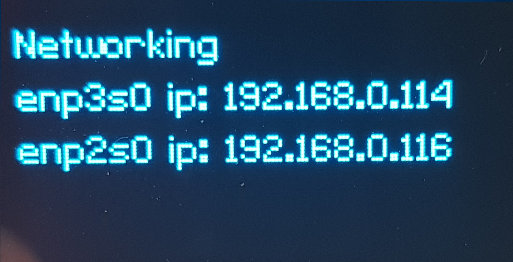

Screen 3: Networking IP list

MHD-8100 display showing networking IP list for each network interface

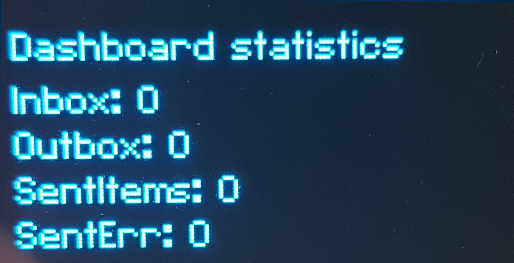

Screen 4: Dashboard Statistics list of messages in:

Inbox
Outbox
Sent Items
Sent Errors

MHD-8100 display showing dashboard statistics - inbox, outbox, sent items and sent errors counts

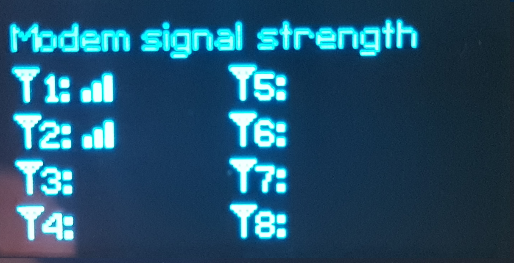

Screen 5: Modem signal strength list of all modems

MHD-8100 display showing modem signal strength for all 8 modems

Automatic power saving: The display will automatically turn off after 5min of inactivity (SW button is not pressed for 5min). To restore the display’s work, simply press the SW button.
