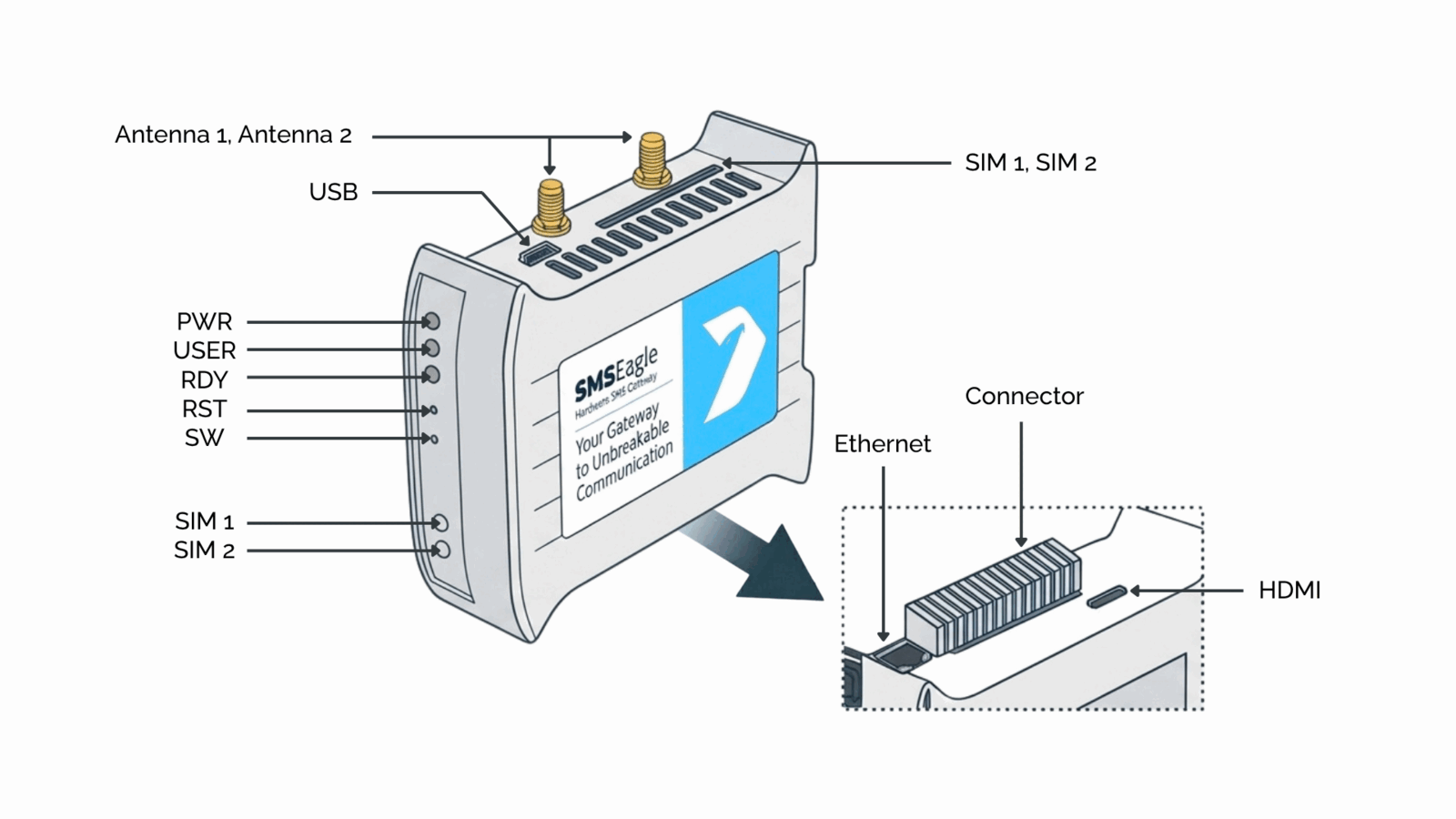

NXS-9750 device diagram: two antenna sockets, two SIM card slots, USB, PWR/USER/RDY LEDs, RST and SW switches, SIM 1 and SIM 2 LEDs, and an inset of the 12-pole connector with Ethernet and HDMI

Connectors, ports and LEDs

Element

Label

Description

VCC Rev.3 Rev.4

VCC

Power connector

12-pole connector

–

4x digital Input, 4x digital output, 1x 1Wire, 1x 5V, 2x GND

SIM Card Slot

SIM1, SIM2

SIM card slots

HDMI port

HDMI

HDMI port (for debugging purposes only)

USB port

USB

USB port (for debugging purposes only)

Ethernet Port

ETH

Ethernet RJ45 socket

Antenna

ANT1, ANT2

Two antenna sockets, one per modem

Power LED

PWR

LED indicating power-on

User LED

USER

LED for user application purpose

SIM1,2 LEDs

Modem 1,2 (optional)

LED indicator for modem status

Ready LED

RDY

LED indication device status

Reset

RST

Switch for rebooting the device

User Switch

SW

Switch for restoring to factory settings
